Technology
The Circuit Management System
Model the system, validate every circuit, then monitor and alert in real time.
Four stages, one connected system
Model
A digital model of the distribution system, built from facility down to the individual circuit.
Validate
Every circuit checked automatically against NEC ampacity and equipment limits.
Monitor
Live amperage and voltage tracked continuously across the entire network.
Alert
Trips and near-trips escalated the moment they happen, with full circuit context.
Structured to match the physical system
Each level is defined once and nests into the next, building a structured digital model of your distribution network.
Access follows the same structure. Organizations are fully isolated, and role-based permissions control who sees each facility and each circuit.
Every circuit validated against the NEC
Load and conductor data are checked automatically, returning an instant pass / fail verdict and a recommended breaker for every circuit.
Ampacity
NEC-validated final ampacity determined through conductor insulation, size, and temperature ratings.
Voltage Drop
Voltage drop and resulting end voltage evaluated against acceptable limits.
Breaker Sizing
A recommended overcurrent device returned for the validated circuit.
NEC Validation
Panel B-4 · Circuit 12
- Conductor
- 6 AWG Cu · THHN · 75°C
- Run length
- 120 ft
- Connected load
- 42 A · continuous
- Final ampacity (derated)
- 52 A
- Voltage drop
- within limits2.8%
- Recommended breaker
- 50 A
NEC 2023 · 310.15 · 240.4 · 240.6
Continuous monitoring, instant escalation

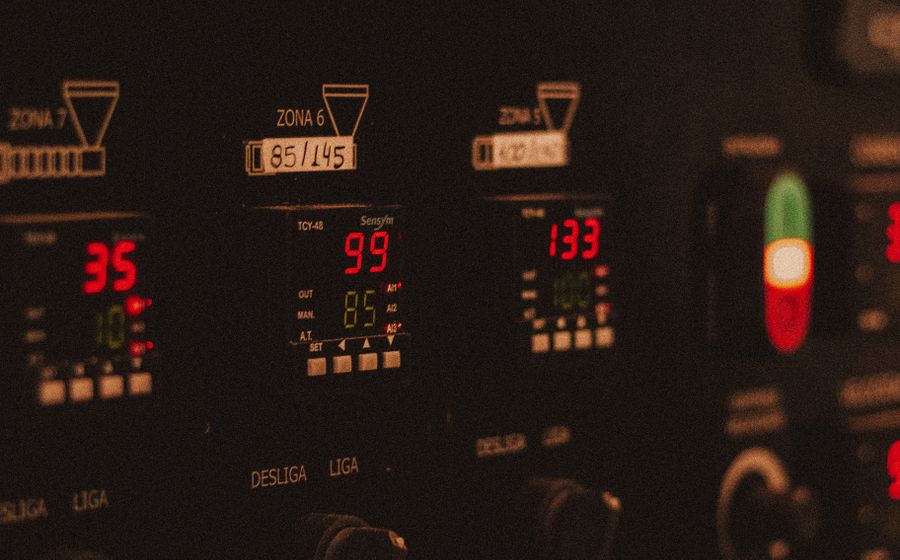

Live Monitoring
Per-circuit current, voltage, and threshold readings across a facility-wide tree view, from substation to circuit, with real-time trend charts for any circuit under watch.
Alerts & Escalation
Trips and near-trips flagged instantly, with per-circuit thresholds, acknowledge-to-resolve tracking, and a fleet-wide view across all facilities.
SMS · on-call rotation
⚠ NEAR TRIP — Panel B-4 / Circuit 12 at 47.6 A (95% of 50 A breaker). Acknowledge: pinnacleenergy.cloud/alerts
Delivered · seconds after detection
Built to fit your infrastructure

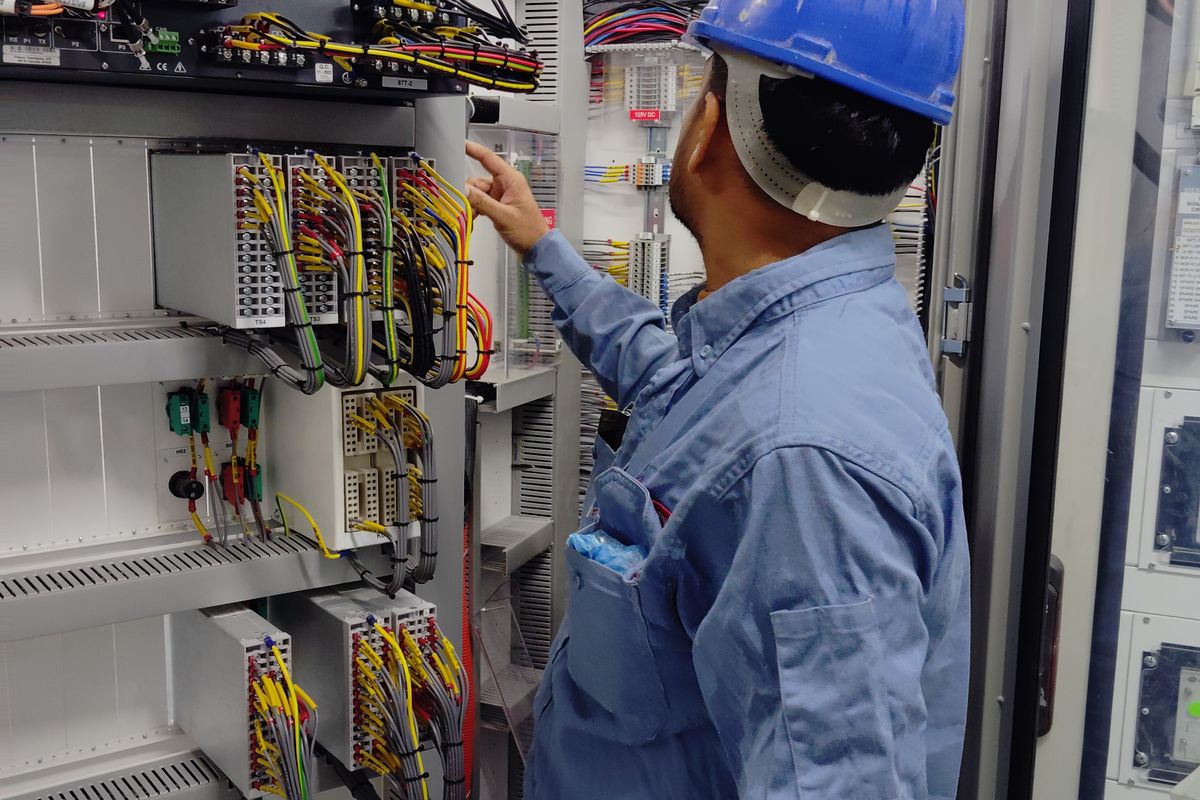

Hardware agnostic
Compatible metering and sensing hardware connects directly. Where new hardware is needed, we configure and install it with your team.
Enterprise access control
Multi-tenant isolation with role-based permissions per organization and facility.
History retained
Hourly readings are kept indefinitely, so you can audit any circuit's history and plan loads against real data.
Seconds to escalation
Threshold checks run continuously. Alerts reach the right people in seconds.
